WOBBLER
Problem
Using the practical application of Geometric dimensioning and tolerancing build and evaluate a pneumatic engine, “Wobbler”.
Process
1) Developed GCode program.
2) Fabricated a part on a computer numerical controlled milling machine.
3) Build the wobbler through machine tools such as: drill press, engine lathe, and vertical milling machine.
Solution
Development of a fully functioning machined pneumatic engine, “Wobbler”, based on the specifications provided.
5th highest RPM in the manufacturing Processes course.

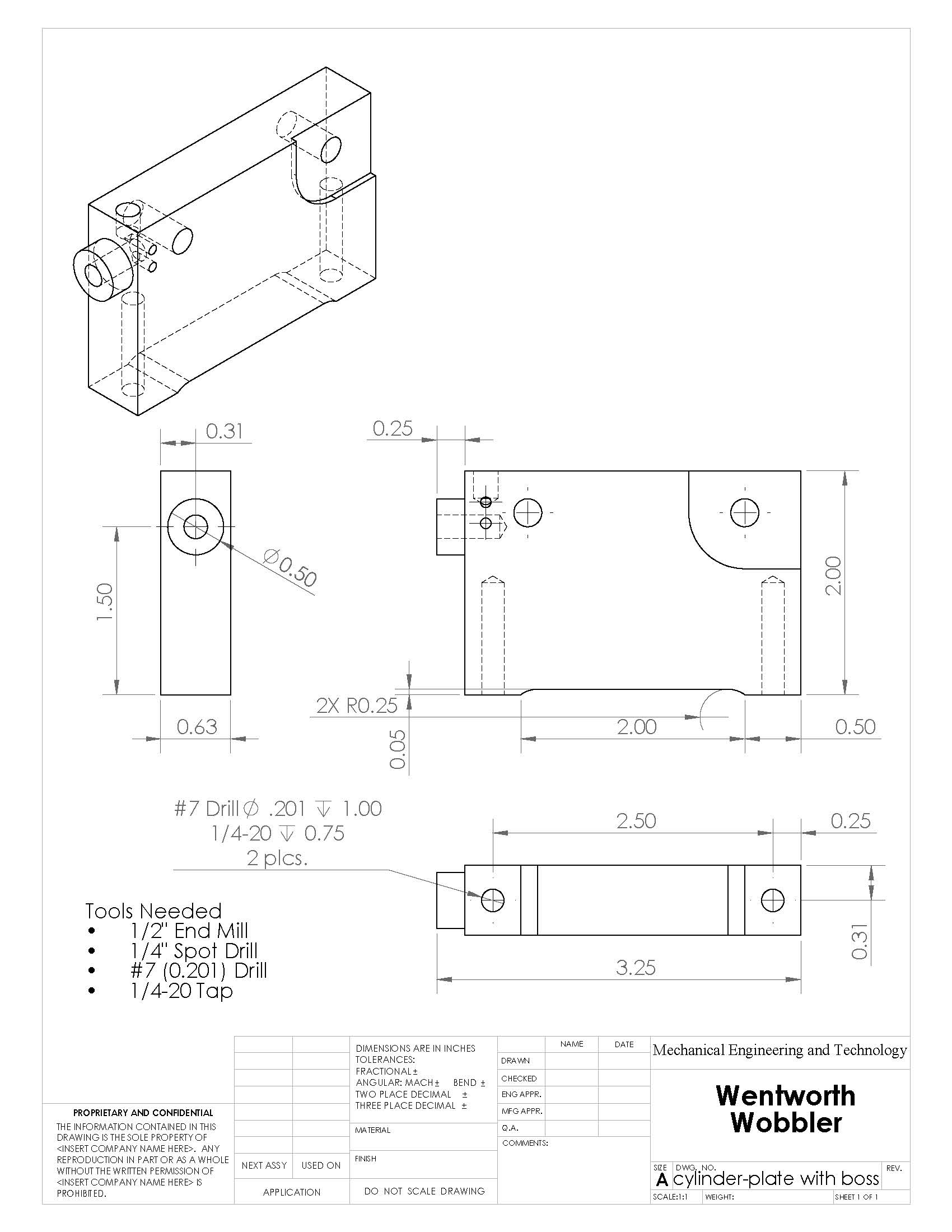

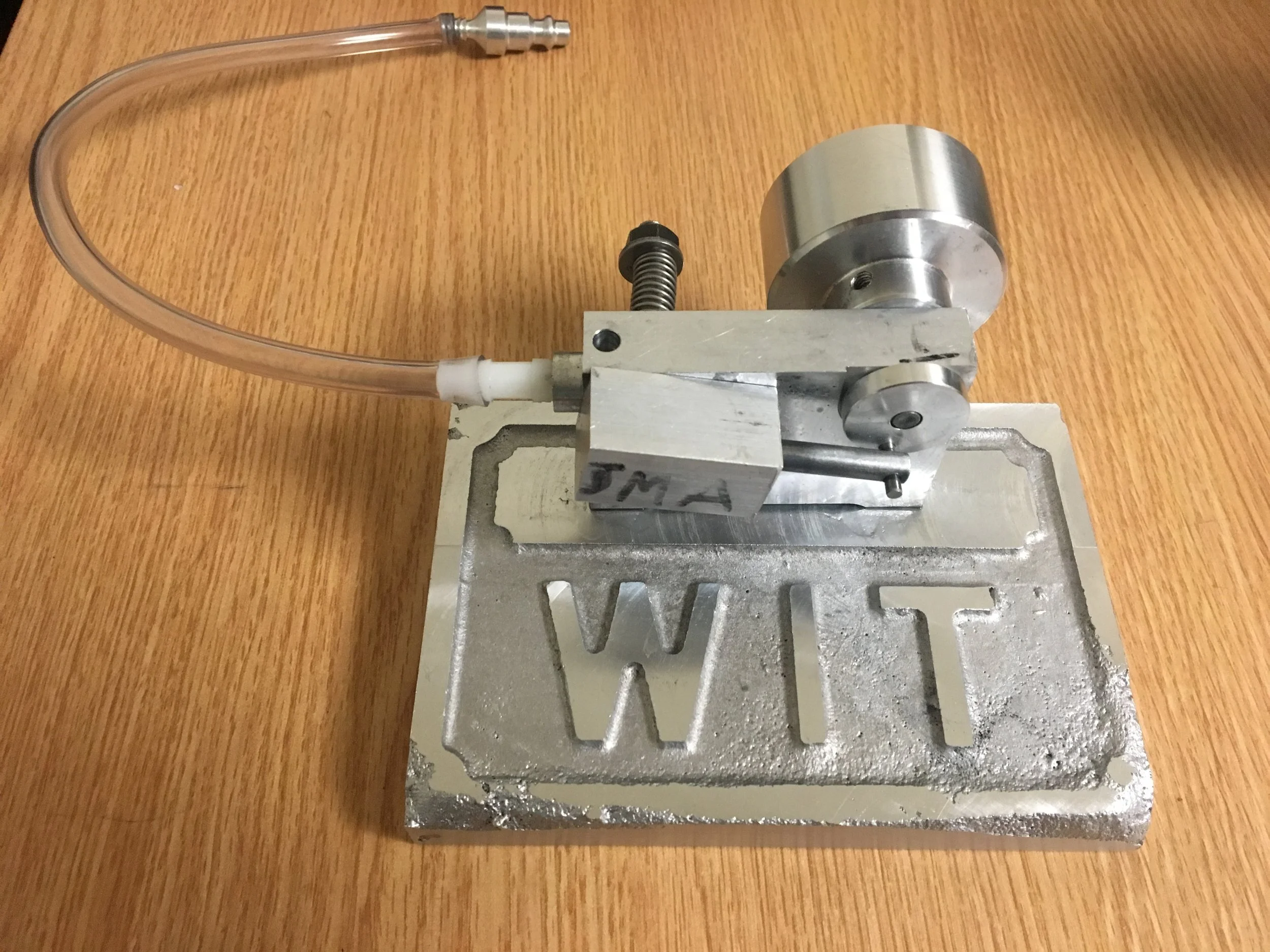

Solidworks Drawings, Machined Parts & Fully Assembled Wobbler
Video of Wobbler Testing
